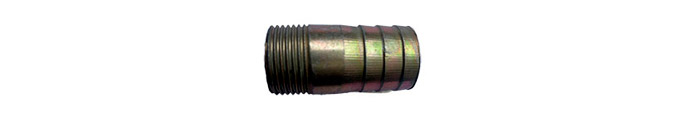

Hose barb to threaded steel fitting
| Nominal diameter | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| DN 15 | 0.00 | 70 | 0 | 0.07 |
| DN 20 | 0.00 | 70 | 0 | 0.11 |
| DN 25 | 0.00 | 50 | 0 | 0.17 |
| DN 32 | 0.00 | 80 | 0 | 0.27 |
| DN 40 | 0.00 | 50 | 0 | 0.42 |
| DN 50 | 0.00 | 0 | 0 | 0.62 |
The hose barb to threaded steel fitting is designed to connect a flexible hose to a pipeline, valve, or equipment with a threaded connection. This type of connection is widely used in water supply systems, pneumatic systems, hydraulic systems, and various industrial installations.
The fitting consists of two main parts: a hose barb for the flexible hose and a threaded connection, which can be manufactured with either male or female threads. The barbed ridges securely hold the hose in place and prevent it from slipping off even under increased pressure. Steel fittings are known for their high strength and resistance to mechanical loads.
The hose barb to threaded fitting is used to connect hoses transporting:
water
air
oils
fuel
technical fluids
To ensure tightness, the threaded connection is recommended to be sealed using PTFE tape (thread seal tape), anaerobic sealants, or other sealing materials.
