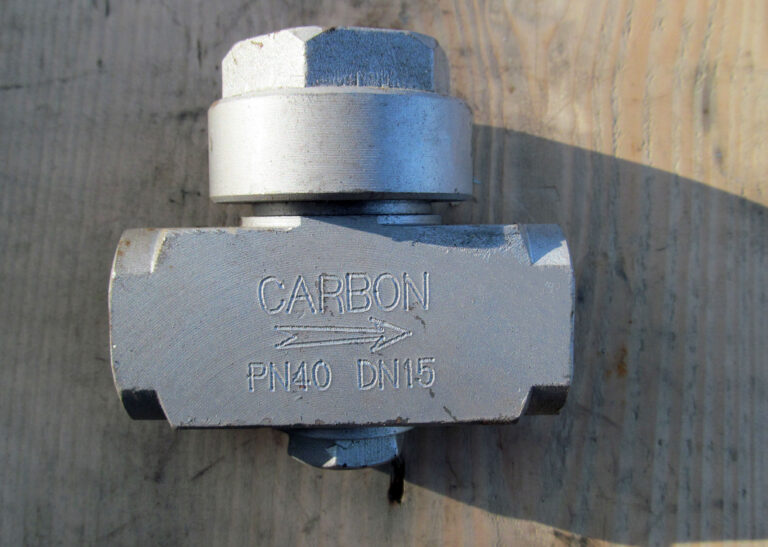

Steam trap 45s13nzh thermodynamic welded Pn 40
| Nominal diameter | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| DN 15 | 1155.00 | 43 | 0 | 1.5 |
| DN 20 | 1287.00 | 33 | 0 | 1.7 |
| DN 25 | 1452.00 | 14 | 0 | 2.0 |
| DN 32 | 2640.00 | 18 | 0 | 3.8 |
| DN 40 | 3333.00 | 10 | 0 | 3.2 |
| DN 50 | 3465.00 | 20 | 0 | 6.0 |
Steam traps 45s13nzh PN 40 for welding are thermodynamic devices designed for automatic removal of condensate from steam systems. They are installed on steam pipes and steam receivers, ensuring efficient condensate management.
Principle of operation
Steam trap 45s13nzh operates based on the aerodynamic effect, which ensures high performance and reliability. When condensate enters device, it causes the disc inside the housing to move, allowing for effective condensate removal with minimal heat loss.
Advantages of use
- Energy saving due to maximum condensate removal efficiency.
- Easy installation and maintenance, which reduces time and resource costs.
Installation and assembly
- Pipe cleaning: It is important to thoroughly clean the pipe before installation to prevent foreign objects from entering the device.
- Flow direction: The steam trap should be installed so that the flow direction matches the arrow on the housing. Installation position – lid up.
| DN | L | D | H | H1 |
|---|---|---|---|---|
| 15 | 82 | 218 | 48 | 30 |
| 20 | 88 | 272 | 53 | 30 |
| 25 | 92 | 339 | 54 | 34 |
| 32 | 105 | 427 | 62 | 40 |
| 40 | 440 | 488 | 75 | 45 |
| 50 | 120 | 612 | 80 | 50 |
| Parameter name | Indicator |
|---|---|
| Nominal pressure PN, MPa (kgf/cm²) | 4.0 (40) |
| Connection type | сварной |
| Working environment | steam, condensate |
| Maximum working environment temperature, °C | 300 |
| Body strength test, MPa | 6.15 |
| Description | Material |
|---|---|
| Bonnet | Steel A105 |
| Sealing | Stainless steel 304 |
| Plug | Steel |
| Body | A105 |
| Disk | Steel A182F6 |
| Mesh | Stainless steel 304 |
