Electric actuators for gate valves 30ch539r, 30ch939r ZA series
| Designation | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| ZA10 | 19500.00 | 9 | 0 | 28.0 |
| ZA15 | 21400.00 | 5 | 0 | 34.0 |
| ZA20 | 22800.00 | 2 | 0 | 36.0 |
| ZA30 | 26500.00 | 0 | 0 | 48.0 |
| ZA45 | 37400.00 | 0 | 0 | 56.0 |
| ZA60 | 42600.00 | 0 | 0 | 64.0 |
| ZA90 | 52000.00 | 0 | 0 | 82.0 |

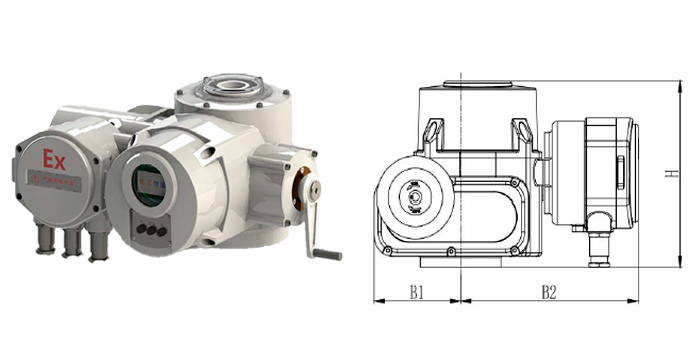

ZA series electric actuators are designed for the automation of 30ch939r gate valves, as well as other pipeline valves. These devices use a modern intelligent control system and do not require additional configuration or installation of a feedback unit. The actuator can directly receive a control signal from an industrial controller or computer, ensuring precise positioning of the gate valve.
Key features:
high control accuracy (0.3–5%);
support for 4–20 mA DC signals, as well as discrete commands;
built-in protection functions: against overheating, torque overload, mechanical limitation, and failures;
ability to operate in "Open/Close/Stop" mode upon loss of control signal;
compact dimensions and low weight;
IP67 protection rating, ensuring reliable operation in harsh conditions;
explosion-proof design (Ex db IIC T4 Gb / Ex tb IIIC T130°C Db), suitable for Zones 1 and 2, as well as for environments with combustible dust.
Application area: water supply, heating networks, and other industries where remote or automatic valve control is required.
The use of electric actuators significantly simplifies the operation of 30ch939r gate valves, increases system reliability, and reduces maintenance costs.
