Electric actuators for steel butterfly valves Q series
| Designation | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| Q05 | 12000.00 | 0 | 0 | 8.5 |
| Q10 | 15000.00 | 2 | 0 | 8.6 |
| Q15 | 16000.00 | 0 | 0 | 8.7 |
| Q20 | 17000.00 | 2 | 0 | 12.7 |
| Q30 | 19000.00 | 2 | 0 | 12.7 |
| Q40 | 21000.00 | 2 | 0 | 13.0 |
| Q60 | 26000.00 | 2 | 0 | 21.0 |

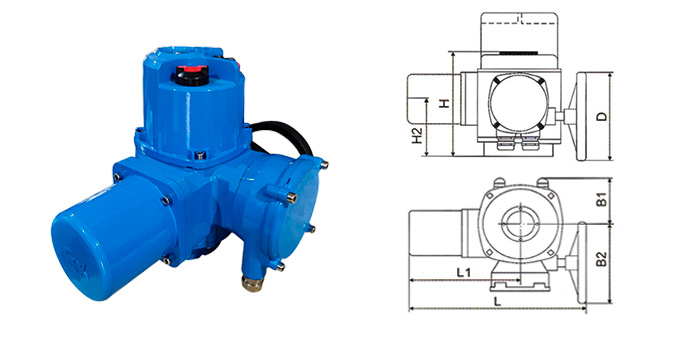

The Q series electric actuators are modern devices designed to control quarter-turn (90-degree rotation) valves such as butterfly valves and similar equipment. These actuators are widely used in various industries, including water supply, oil & gas, chemical processing, and power generation. They enable process automation through precise control of shut-off valves.
Key Features of Q Series Electric Actuators
1. Design
The Q series actuators feature a compact housing, making them suitable for installations with limited space. This is particularly important for industrial facilities with high equipment density.
2. Power Supply
- Motor: 3-phase AC380V, 50Hz
- Control: 2-phase AC220V, 50Hz
3. Ambient Temperature Range
-20°C to +60°C
4. Humidity
≤95% (at +25°C)
5. IP Protection Rating
All models feature high protection ratings (IP65 or IP67), ensuring resistance to dust and water ingress.
IP (Ingress Protection) Ratings
Designated as IPXX, where:
- First digit - protection against solid particles (dust, sand).
- Second digit - protection against liquids.
IP65
- 6 - complete dust protection (dust-tight).
5 - protection against water jets from any direction (but not immersion).
Application: Actuators for outdoor installation where rain or pressure washing may occur.
IP67
- 6 - complete dust protection.
- 7 - withstands temporary immersion in water (up to 1m for 30 minutes).
Application: Actuators that may be exposed to water (e.g., in flood-prone areas).
6. Mounting
The actuator can be installed in any position, but horizontal motor orientation is recommended.

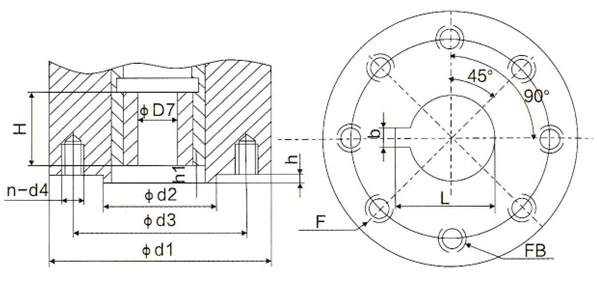

Connection Dimensions
Electric actuator type | Flange type | d1 | d2 | d3 | n-d4 | D7 Reserved/Maximum | H | h | h1 | b | |
Q05 Q10 Q15 |
| FB1 | 77 |
| 57 | 4-M6 | 12.7/15.9 | 33 |
|
| 3/5 |
| FB2 | 92 |
| 70 | 4-M8 | 19 | 33 |
|
| 5 | |
F05 |
| 65 | 35 | 50 | 4-M6 | 8/19 | 33 | 3 | 2 |
| |
F07 |
| 90 | 55 | 70 | 4-M8 | 8/19 | 33 | 3 | 2 |
| |
Q20 Q30 Q40 |
| FB3 | 115 |
| 89 | 4-M12 | 22.2 | 42 |
|
| 5 |
F07 |
| 90 | 55 | 70 | 4-M8 | 12/28 | 42 | 3 | 2 |
| |
F10 |
| 125 | 70 | 102 | 4-M10 | 12/28 | 42 | 3 | 2 |
| |
Q60 Q120 |
| FB3 | 115 |
| 89 | 4-M12 | 22.2/28.6 | 50 |
|
| 5/8 |
| FB4 | 140 |
| 108 | 4-M12 | 31.7 | 50 |
|
| 8 | |
F10 |
| 125 | 70 | 102 | 4-M10 | 15/38 | 50 | 3 | 2 |
| |
F12 |
| 150 | 85 | 125 | 4-M12 | 15/38 | 50 | 3 | 2 |
| |
Q180 |
| FB5 | 197 |
| 159 | 4-M16 | 33.3/38.2 | 60 |
|
| 10 |
F14 |
| 175 | 100 | 140 | 4-M16 | 20/38 | 60 | 3 | 3 |
| |
Q300 Q500 |
| FB5 | 197 |
| 159 | 4-M16 | 41.3 | 80 |
|
| 10 |
F16 |
| 210 | 130 | 165 | 4-M20 | 20/55 | 80 | 3 | 3 |
| |
Parameters table
Electric actuator type | Output torque, N/m | Output speed, rpm | Maximum stem diameter, mm | Manual switchable mode | Engine power, W | Nominal current, A | Weight, kg |
Q05 | 50 | 1 | 19 | 60 | 45 | 0.35 | 8.5 |
Q10 | 100 | 1 | 19 | 60 | 60 | 0.48 | 8.6 |
Q15 | 150 | 1 | 19 | 60 | 75 | 0.55 | 8.7 |
Q20 | 200 | 1 | 28 | 90 | 90 | 0.65 | 12.7 |
Q30 | 300 | 1 | 28 | 90 | 120 | 0.75 | 12.7 |
Q40 | 400 | 1 | 28 | 90 | 150 | 0.85 | 13.0 |
Q60 | 600 | 1 | 38 | 87 | 180 | 0.95 | 21.0 |
Q120 | 1200 | 1 | 38 | 87 | 250 | 1.3 | 21.0 |
Q180 | 1800 | 1 | 38 | 87 | 370 | 1.7 | 23.0 |
Q300 | 3000 | 0.5 | 55 | 348 | 370 | 1.7 | 35.0 |
Q500 | 5000 | 0.5 | 55 | 348 | 550 | 2.5 | 35.0 |

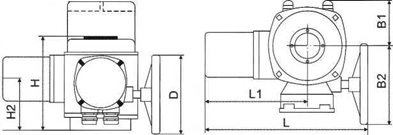

Dimensions
Electric actuator type | B1 | B2 | H | H1 | H2 | L | L1 | D |
Q05/15 | 68 | 114 | 156 | 270 | 73 | 250 | 157 | 140 |
Q20/40 | 91 | 157 | 191 | 273 | 103 | 332 | 208 | 160 |
Q60/180 | 143 | 203 | 227 | 309 | 126 | 424 | 232 | 250 |
Q300/500 | 143 | 203 | 291 | 373 | 190 | 424 | 232 | 250 |
