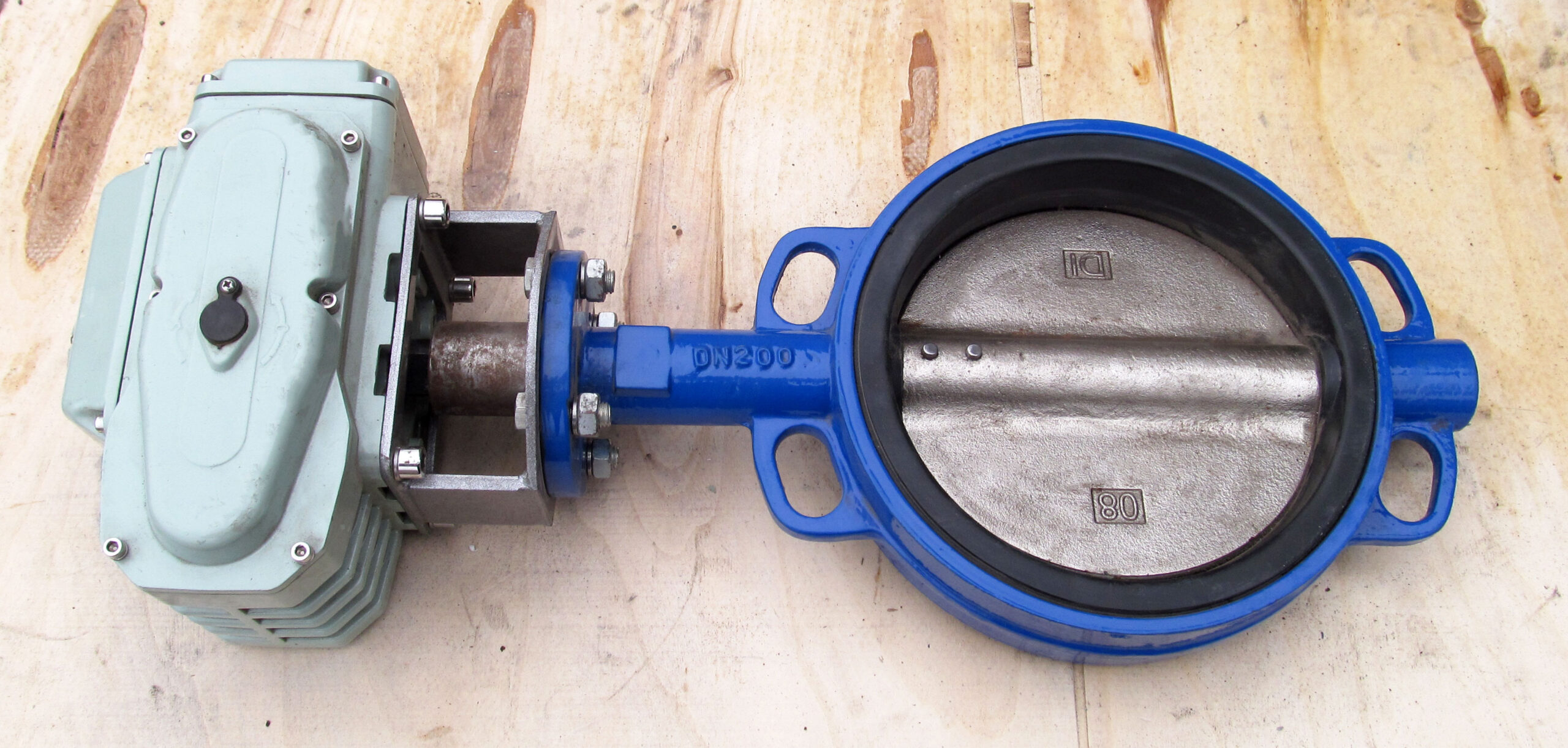

Butterfly valve with galvanized disc and electric actuator Pn 16
| Nominal diameter | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| DN 50 | 11300.00 | 0 | 0 | 8.5 |
| DN 65 | 12100.00 | 0 | 0 | 10.2 |
| DN 80 | 12900.00 | 0 | 0 | 10.2 |
| DN 100 | 14700.00 | 2 | 0 | 10.3 |
| DN 125 | 16250.00 | 0 | 0 | 13.6 |
| DN 150 | 17000.00 | 0 | 0 | 15.1 |
| DN 200 | 24000.00 | 2 | 0 | 29.7 |
| DN 250 | 26800.00 | 0 | 0 | 39.5 |

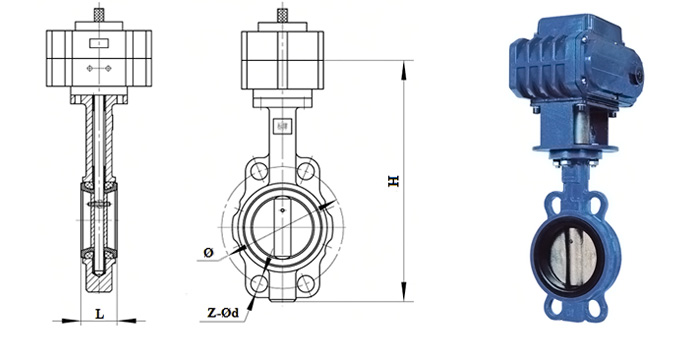

| DN | Ø | L | b | H | Z-Ød |
|---|---|---|---|---|---|
| 50 | 125 | 43 | 125 | 453 | 4-18 |
| 65 | 145 | 46 | 125 | 483 | 4-18 |
| 80 | 160 | 46 | 125 | 478 | 4-18 |
| 100 | 180 | 52 | 125 | 519 | 4-18 |
| 125 | 210 | 56 | 245 | 713 | 4-18 |
| 150 | 240 | 56 | 245 | 749 | 4-23 |
| 200 | 295 | 60 | 245 | 843 | 4-23 |
| 250 | 355 | 68 | 313 | 947 | 4-25 |
| Parameter name | Indicator |
|---|---|
| Nominal pressure PN, MPa (kgf/cm²) | 1.6 (16) |
| Connection type | межфланцевый |
| Working environment | water |
| Maximum working environment temperature, °C | 90 |
| Sealing class | D |
| Body strength test, MPa | 2.4 |
| Sealing tightness test, MPa | 1.8 |
| Description | Material |
|---|---|
| Корпус, диск | Серый чугун |
| Шток | Сталь 25л |
| Уплотнение | EPDM |
