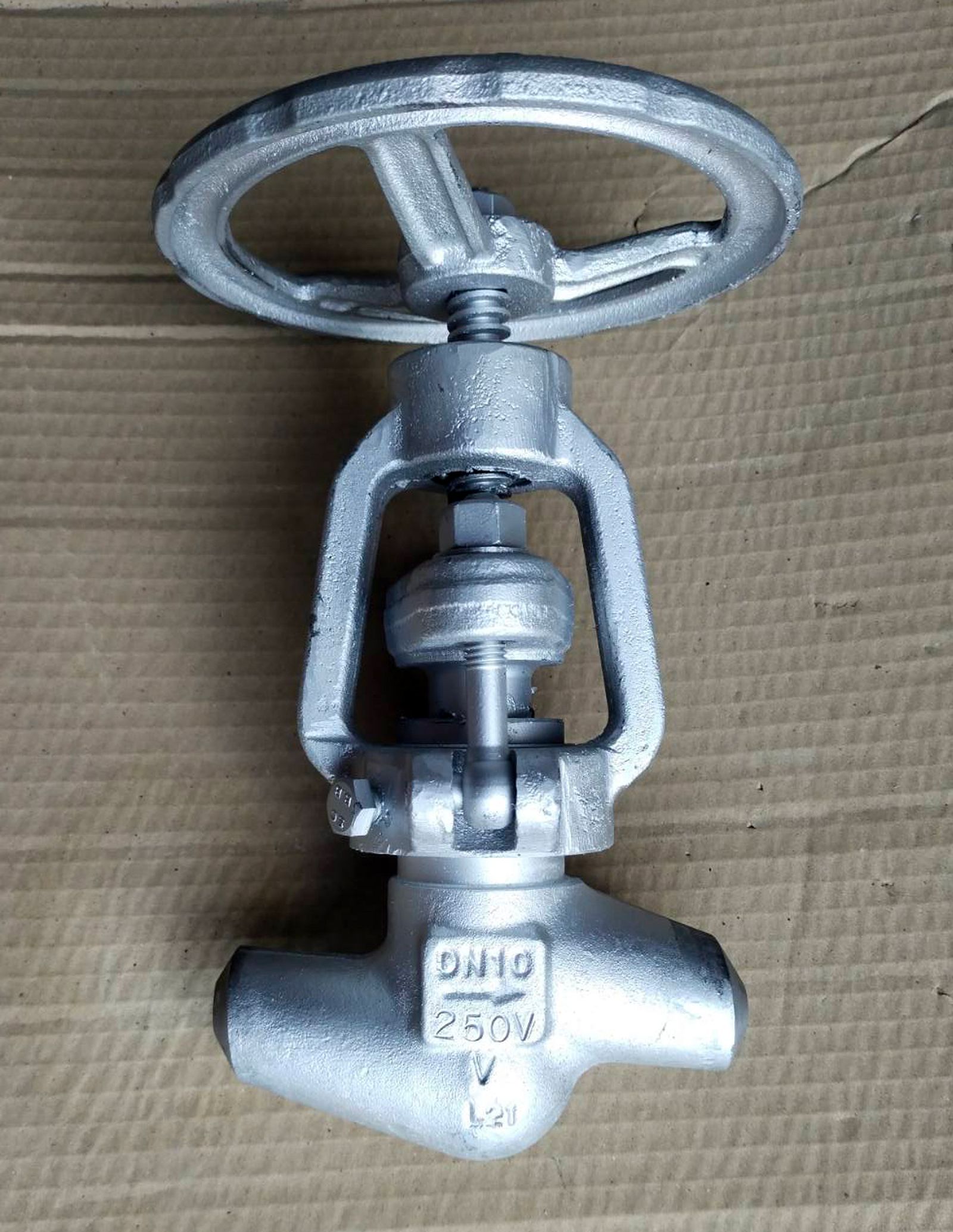

Forged steel welding globe valve version 1 Tmax 540°C Pn 250
| Nominal diameter | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| DN 10 | 3200.00 | 150 | 0 | 4.0 |
| DN 20 | 4500.00 | 79 | 0 | 8.0 |
Forged steel globe valves PN 250 for welding. The valves are made of high-quality steel A182 F22, resistant to high temperatures and high pressure. Intended for installation as a shut-off mechanism on high-pressure pipelines at a maximum temperature of 540 °C.

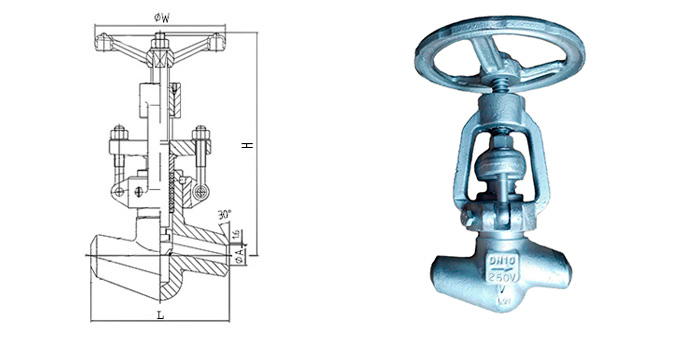

| DN | L | H |
|---|---|---|
| 10 | 130 | 250 |
| 20 | 170 | 310 |
| Parameter name | Indicator |
|---|---|
| Nominal pressure PN, MPa (kgf/cm²) | 25.0 (250) |
| Connection type | сварной |
| Working environment | water, steam, petroleum products |
| Maximum working environment temperature, °C | 540 |
| Sealing class | A |
| Body strength test, MPa | 37.5 |
| Sealing tightness test, MPa | 27.5 |
| Description | Material |
|---|---|
| Body | A182 F22 |
