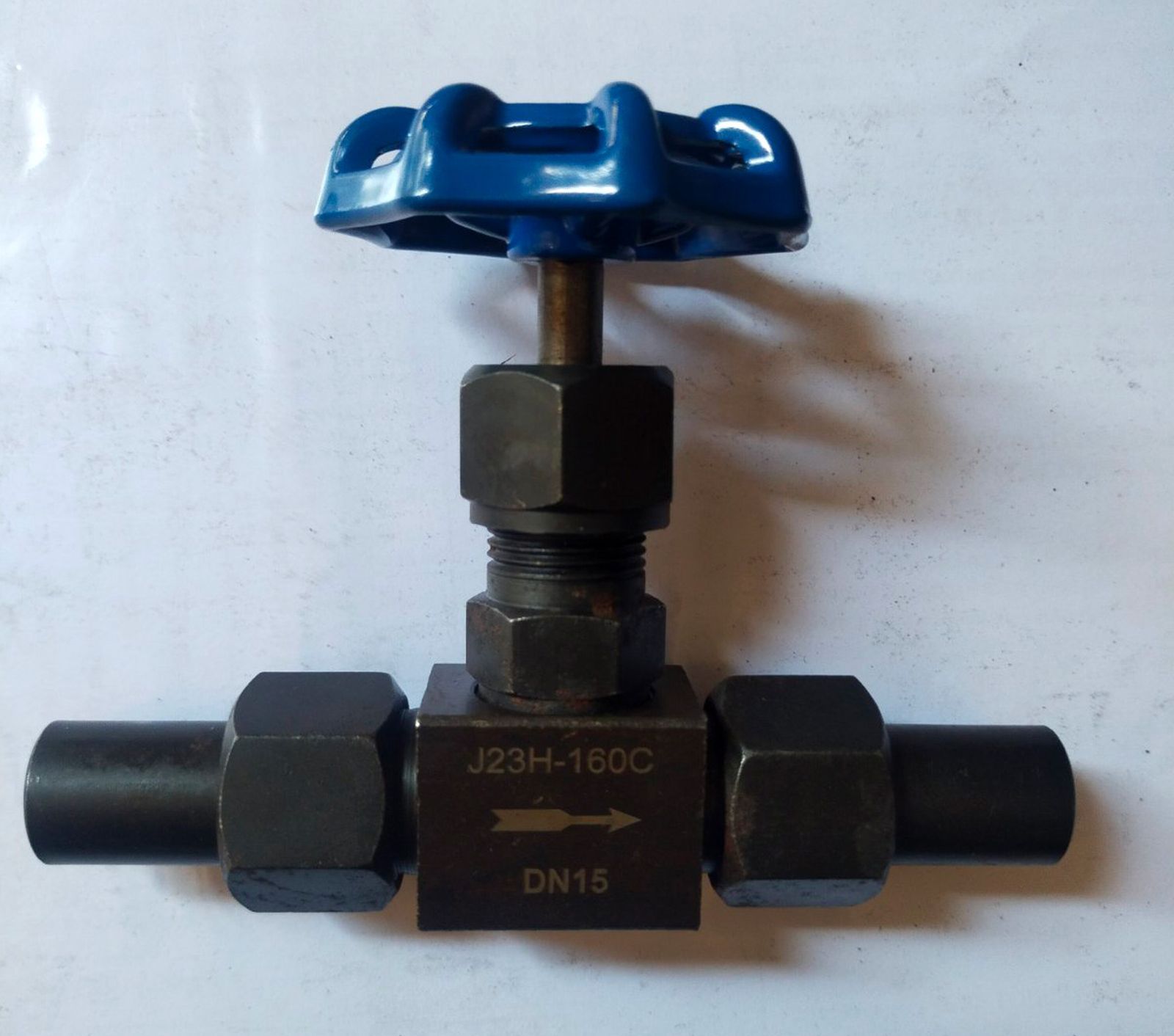

Steel needle globe valve 15s54bk with nipples Pn 160
| Nominal diameter | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| DN 15 | 900.00 | 37 | 0 | 0.6 |
Steel needle globe valves 15s54bk PN 160 are designed to partially or completely shut off flow of the working medium in heat engineering and process control systems. The main task of the valves is to ensure reliable control of liquid or gaseous flows that are neutral to the materials of the structure.
Advantages of globe valve 15s54bk
- High tightness: The design of the needle element ensures minimal leakage of the working medium even at high pressures.
- Universal application: Suitable for working with various media (gases and liquids), and can also be temporarily used as a sampler.
Application areas
- Heat control units
- Differential pressure gauges
- Working medium sampling units
- Pulse pipeline monitoring systems
| DN | L | H |
|---|---|---|
| 15 | 68 | 100 |
| Parameter name | Indicator |
|---|---|
| Nominal pressure PN, MPa (kgf/cm²) | 16.0 (160) |
| Connection type | сварной |
| Working environment | water, steam, petroleum products |
| Maximum working environment temperature, °C | 200 |
| Sealing class | A |
| Body strength test, MPa | 24 |
| Sealing tightness test, MPa | 17.6 |
| Description | Material |
|---|
