Needle globe valve 15s54bk steel spindle Pn 160
| Nominal diameter | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| DN 15 | 572.00 | 9 | 0 | 0.5 |
| DN | L | H |
|---|---|---|
| 15 | 68 | 80 |
| Parameter name | Indicator |
|---|---|
| Nominal pressure PN, MPa (kgf/cm²) | 16.0 (160) |
| Connection type | муфтовый |
| Working environment | water, steam, petroleum products |
| Maximum working environment temperature, °C | 200 |
| Sealing class | A |
| Body strength test, MPa | 24 |
| Sealing tightness test, MPa | 17.6 |

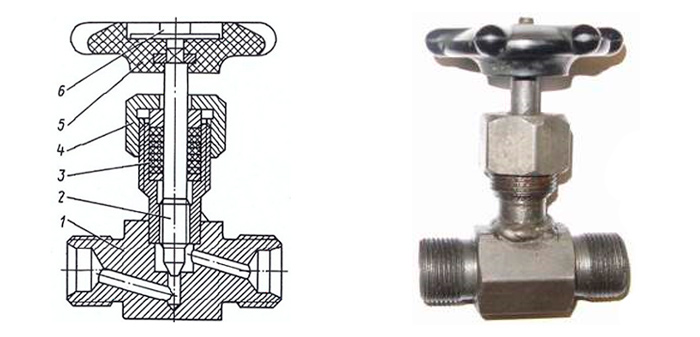

| Description | Material |
|---|---|
| Корпус | А 105 |
| Шпиндель | Carbon Steel WCB |
| Крышка | А 105 |
| Прокладка | А 105 |
| Уплотнение | PTFE |
| Сальник | А 105 |
| Гайка | А 105 |
| Болт | А 105 |
| Маховик | 18-8 |
