Stainless steel collar flanges AISI 321 (12Х18Н10Т) GOST 12821-80 Pn 25
| Nominal diameter | Price, UAH without VAT | Availability in warehouse, pcs. | Reserve, pcs. | Weight, kg |
|---|---|---|---|---|
| DN 15 | 572.00 | 0 | 0 | 0.79 |
| DN 20 | 751.00 | 0 | 0 | 0.97 |
| DN 25 | 986.00 | 0 | 0 | 1.18 |
| DN 32 | 1322.00 | 0 | 0 | 1.83 |
| DN 40 | 1717.00 | 0 | 0 | 2.19 |
| DN 50 | 1846.00 | 0 | 0 | 2.78 |
| DN 65 | 2281.00 | 0 | 0 | 3.71 |
| DN 80 | 3342.00 | 0 | 0 | 4.44 |
| DN 100 | 4179.00 | 0 | 0 | 6.51 |
| DN 125 | 7400.00 | 0 | 0 | 9.41 |
| DN 150 | 9111.00 | 0 | 0 | 12.52 |
| DN 200 | 12955.00 | 0 | 0 | 17.44 |
| DN 250 | 19141.00 | 0 | 0 | 24.4 |
| DN 300 | 24985.00 | 0 | 0 | 33.29 |
| DN 350 | 38095.00 | 0 | 0 | 46.57 |
| DN 400 | 60000.00 | 0 | 0 | 64.81 |
| DN 500 | 85000.00 | 0 | 0 | 88.91 |
| DN 600 | 117583.00 | 0 | 0 | 123.7 |
Stainless steel collar flanges PN 25, manufactured according to GOST 12821-80 standard of stainless steel AISI 321 (12Х18Н10Т), are designed for connecting pipelines, pipeline valves and equipment in high-pressure systems. Collar flanges have a special protrusion (collar) that ensures even distribution of the load on the connection.
Manufacturing material: Flanges are made of stainless steel AISI 321 (12Х18Н10Т). This material has high corrosion resistance due to the content of chromium (about 18%) and nickel (about 10%).
Application of collar flanges made of AISI 321 (12Х18Н10Т) stainless steel:
- Used in the energy sector for steam pipelines and heat exchangers.
- Used in the chemical industry for transporting aggressive substances.
- Used in the oil and gas industry for working with oil, gas, and their derivatives.
- Suitable for the pharmaceutical industry due to the high corrosion resistance and hygiene of the material.
Advantages:
- High connection reliability due to the neck design.
- Resistance to deformation under high loads and pressures.
- Durability even under the influence of aggressive chemicals or extreme temperatures.

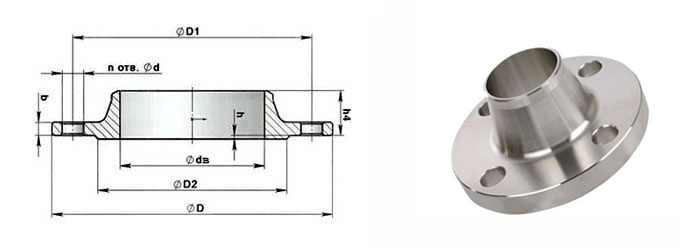

| DN | D | D1 | D2 | dв | b | Z-Ød |
|---|---|---|---|---|---|---|
| 15 | 95 | 65 | 47 | 12 | 14 | 4-12 |
| 20 | 105 | 75 | 58 | 18 | 14 | 4-12 |
| 25 | 115 | 85 | 68 | 25 | 14 | 4-12 |
| 32 | 135 | 100 | 78 | 31 | 16 | 4-16 |
| 40 | 145 | 110 | 88 | 38 | 16 | 4-16 |
| 50 | 160 | 125 | 102 | 49 | 17 | 4-16 |
| 65 | 180 | 145 | 122 | 66 | 19 | 8-16 |
| 80 | 195 | 160 | 133 | 78 | 19 | 8-16 |
| 100 | 230 | 190 | 158 | 96 | 21 | 8-20 |
| 125 | 270 | 220 | 184 | 121 | 23 | 8-24 |
| 150 | 300 | 250 | 212 | 146 | 25 | 8-24 |
| 200 | 360 | 310 | 278 | 202 | 27 | 12-24 |
| 250 | 425 | 370 | 335 | 254 | 29 | 12-27 |
| 300 | 485 | 430 | 390 | 303 | 32 | 16-27 |
| 350 | 550 | 490 | 450 | 351 | 36 | 16-30 |
| 400 | 610 | 550 | 505 | 398 | 40 | 16-33 |
| 500 | 730 | 660 | 615 | 500 | 44 | 20-33 |
| 600 | 840 | 770 | 720 | 600 | 49 | 20-36 |
| Parameter name | Indicator |
|---|---|
| Nominal pressure PN, MPa (kgf/cm²) | 2.5 (25) |
| Connection type | приварной встык |
| Design features | воротниковый |
| Execution | 1 |
| Working environment | water, petroleum products, acid, alkali, aggressive liquids |
| Maximum working environment temperature, °C | 450 |
| Description | Material |
|---|---|
| Flange | AISI/SS 321 (12Х18Н10Т) |
